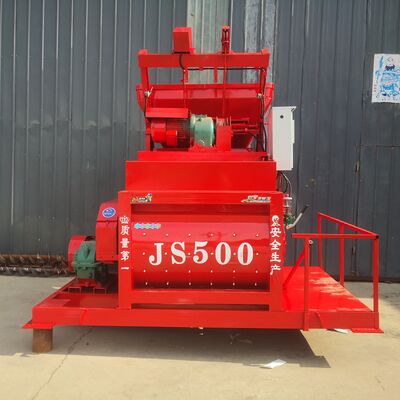

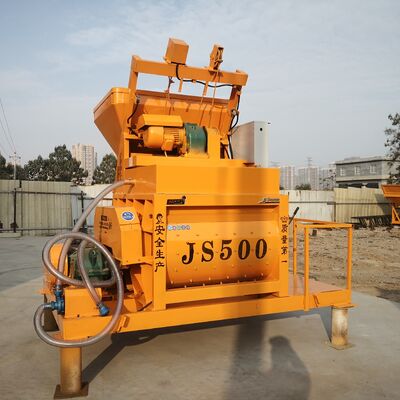

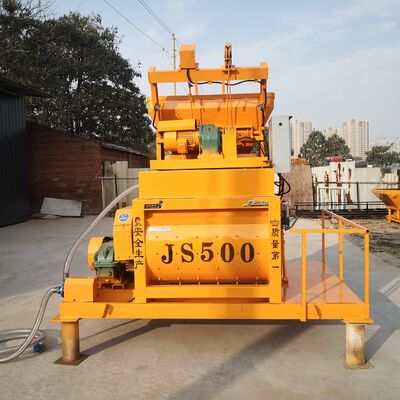

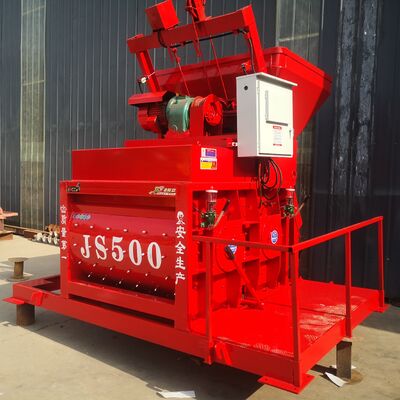

Introduction of S500 mixer
The JS500 concrete mixer is a two-wheeled mandatory medium-sized mixer with 0.5 cubic metre feed capacity as its core specification. It is an efficient mainstay machine for small and medium-sized construction projects and prefabricated parts plants. It can be operated on a single unit or form a HZS25 mixer station, suitable for multi-scenario concrete mixing needs.
A snapshot of core parameters
- Discharge capacity: 500 L (0.5m3), feed capacity 800 L
- Theoretical productivity: 25 m3 / h, stirring speed 35 r / min
- Core power: mixer motor 18.5kW, winch motor 5.5kW
- Suitable aggregate: maximum diameter 60-80 mm (pebble / gravel)
- Removal mode: supports three types of manual / pneumatic / hydraulic, and the removal is clean and quick.
- Overall unit weight: approximately 3 tons, transport / working condition dimensions suitable for conventional sites
Core strengths
1. Stirring efficiently and uniformly: The double-dip axis rotates in a direction, the spiral blade forms a three-dimensional convection-cutting motion, rapid mixing in 30 seconds, low residue rate, and suitable for dry hard, plastic, light aggregate concrete and various kinds of mortar.
2. Longevity and low consumption: thicker mixer tubes + high-abrasion alloy lining, high strength and low resistance of spiral arms, multiple shaft seals to prevent leakage, the whole machine is resistant to overload, low noise, and low maintenance cost.
3. Flexible adaptation: It can be operated independently, and can also be combined with PLD batching machine to form a simple mixing station, with tipper trucks and self-unloading trucks to meet the needs of different scale projects.
4. Easy operation: The chute raises double limit, and the chute stops reliably. The electric control system performance is stable, the unloading door is flexible, and it is suitable for the complex work conditions of the site.
Applicable scenarios
Widely used in small and medium-sized construction sites and prefabricated component factories, and suitable for industrial and civil construction projects such as roads, bridges, water conservancy, and docks, it is the ideal equipment for rural infrastructure and small commercial projects.
Core values
Considering the quality, efficiency and durability of stirring, the cost of single-unit operations can be controlled, the capacity of combined use can be upgraded, and it is suitable for all scenarios from fragmented pouring to small projects, making it a cost-effective choice for small and medium-sized concrete construction.
